Abstract
Systems such as Google Street View and Bing Maps Streetside enable
users to virtually visit cities by navigating between immersive
360° panoramas, or bubbles. The discrete moves from bubble to
bubble enabled in these systems do not provide a good visual sense
of a larger aggregate such as a whole city block. Multi-perspective
"strip" panoramas can provide a visual summary of a city street but
lack the full realism of immersive panoramas.

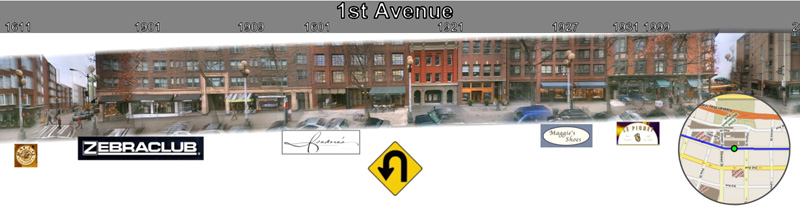

We present Street Slide, which combines the best aspects of the
immersive nature of bubbles with the overview provided by multiperspective
strip panoramas. We demonstrate a seamless transition
between bubbles and multi-perspective panoramas. We also
present a dynamic construction of the panoramas which overcomes
many of the limitations of previous systems. As the user slides sideways,
the multi-perspective panorama is constructed and rendered
dynamically to simulate either a perspective or hyper-perspective
view. This provides a strong sense of parallax, which adds to the
immersion. We call this form of sliding sideways while looking at
a street façade a street slide. Finally we integrate annotations and a
mini-map within the user interface to provide geographic information
as well additional affordances for navigation. We demonstrate
our Street Slide system on a series of intersecting streets in an urban
setting. We report the results of a user study, which shows that
visual searching is greatly enhanced with the Street Slide interface
over existing systems from Google and Bing.
@article{Kopf2010,
author = {Johannes Kopf and Billy Chen and
Richard Szeliski and Michael Cohen},
title = {Street Slide: Browsing Street Level Imagery},
journal = {ACM Transactions on Graphics (Proceedings of SIGGRAPH 2010)},
year = {2010},
volume = {29},
number = {4},
pages = {96:1 -- 96:8},
}
|
|
|
